Action Bar

Action Bars contain primary and secondary actions related to a page or task.

GitHub Storybook Figma

yarn add @workday/canvas-kit-react

Sources

GitHub Storybook Figma

Install

yarn add @workday/canvas-kit-react

Anatomy

Primary Button: A button that is discoverable and used as the most important action to take on a page.
Secondary Button: A button or set of buttons that is less important than the Primary Button.
Overflow Menu: An Icon-Only Secondary Button Variant with an Ellipsis Icon used for responsive screens or small page width to show more actions.
Container Bar: The Container Bar is used to house action buttons and is anchored at the bottom of the screen.

Usage Guidance

Primary Buttons should only be used once per screen. If there are other buttons on screen, use the Secondary or Tertiary Buttons. However, Tertiary Buttons should not be on the Action Bar unless it's in the Overflow Menu.
Action Bars are placed at the bottom of the screen, and will stick as the user scrolls.
Although actions may change, the placement of the Action Bar should persist until the task is successfully submitted.
Action Bars can contain up to 3 actions and an Overflow Menu when appropriate.
If there are more than 3 actions, hide the 4th and other remaining actions in an Overflow Menu that is launched by clicking the Icon Only Secondary Button Variant.
There should be between 1-7 items to choose from in an Overflow Menu.
Buttons placed in Action Bars should be grouped logically, either by usage or importance.

When to Use

Use Action Bars for tasks that require navigating between pages, saving progress, submitting a task, or cancelling a task.

When to Use Something Else

Consider taking a Button outside of the Action Bar if the action is not related to the progress or status of a task.
Consider using a Text Button instead of an Action Bar if an action is less popular or less important.

Examples

Basic Example

ActionBar includes a container ActionBar component and the following subcomponent: ActionBar.List which should contains ActionBar.Item.

In a basic example of an ActionBar there are two buttons. The primary action button should be used only once and left aligned if content is left to right, followed by secondary buttons. Tertiary buttons should not be used in the Action Bar.

Icons Example

ActionBar.Item renders a SecondaryButton as default, so it's possible to use other Button props with ActionBar.Item such as icon or size.

Delete Action Example

ActionBar.Item is a SecondaryButton by default but it's posible to change it to another element, such as DeleteButton, by using as prop.

Overflow Example

ActionBar container can contain up to 3 actions and an Overflow Menu if there are more than 3 actions, the other remaining actions should be placed into an Overflow Menu that is launched by clicking the Overflow Button.

Also, ActionBar is a responsive component based on the width of its container. If the rendered actions exceed the width of the ActionBar.List, an overflow menu will be rendered. This only works against the dynamic API where you give the ActionBarModel an array of items to be rendered. The dynamic API handles the React key for you based on the item's identifier. The dynamic API requires either an id on each item object or a getId function that returns an identifier based on the item. The below example uses an id property on each item.

The dynamic API takes in any object, but since nothing is known about your object, a render prop is necessary to instruct a list how it should render.

Change Action Bar container size

The number of visible buttons can also be adjusted by using the model's maximumVisible attribute. You can change it from the default of 3 to any number greater than 1 and less than items.length.

Component API

ActionBar

ActionBar is a container component that is responsible for creating an and sharing it with its subcomponents using React context. It does not represent a real element.

<ActionBar items={[]}>{Child components}</ActionBar>

Alternatively, you may pass in a model using the hoisted model pattern.

const model = useActionBarModel({
  items: [],
});

<ActionBar model={model}>{Child components}</ActionBar>;

Props

Props extend from . If a model is passed, props from ActionBarModelConfig are ignored.

Name	Type	Description
`children`	`ReactNode`	The contents of the ActionBar. Can be `ActionBar` children or any valid elements.
`model`		Optional model to pass to the component. This will override the default model created for the component. This can be useful if you want to access to the state and events of the model, or if you have nested components of the same type and you need to override the model provided by React Context.
`elemPropsHook`	`( model: , elemProps: TProps ) => HTML Attributes`	Optional hook that receives the model and all props to be applied to the element. If you use this, it is your responsibility to return props, merging as appropriate. For example, returning an empty object will disable all elemProps hooks associated with this component. This allows finer control over a component without creating a new one.

ActionBar.List

ActionBar.List is a element. It is a container for subcomponents. To render an overflow button for ActionBar with overflow behavior overflowButton prop with overflow button component as a value should be passed.

// without overflow
<ActionBar.List>{ActionBar.Items}</ActionBar.List>

// with overflow
<ActionBar.List overflowButton={<ActionBar.OverflowButton aria-label="More actions"/>}>
  {ActionBar.Items}
</ActionBar.List>

Layout Component

ActionBar.List supports all props from thelayout component.

Props

Props extend from div. Changing the as prop will change the element interface.

Name	Type	Description	Default
`children`	`(( item: T, index: number ) => ReactNode) \| ReactNode`	If items are passed to a `ActionBarModel`, the child of `ActionBar.List` should be a render prop. The List will determine how and when the item will be rendered.
`overflowButton`	`ReactNode`	`ActionBar.List` will render overflow button component if it's passed in `overflowButton`.
`as`	`React.ElementType`	Optional override of the default element used by the component. Any valid tag or Component. If you provided a Component, this component should forward the ref using `React.forwardRef`and spread extra props to a root element. Note: Not all elements make sense and some elements may cause accessibility issues. Change this value with care.	`div`
`ref`	`React.Ref<R = div>`	Optional ref. If the component represents an element, this ref will be a reference to the real DOM element of the component. If `as` is set to an element, it will be that element. If `as` is a component, the reference will be to that component (or element if the component uses `React.forwardRef`).
`model`		Optional model to pass to the component. This will override the default model created for the component. This can be useful if you want to access to the state and events of the model, or if you have nested components of the same type and you need to override the model provided by React Context.
`elemPropsHook`	`( model: , elemProps: TProps ) => HTML Attributes`	Optional hook that receives the model and all props to be applied to the element. If you use this, it is your responsibility to return props, merging as appropriate. For example, returning an empty object will disable all elemProps hooks associated with this component. This allows finer control over a component without creating a new one.

useOverflowListMeasure

This elemProps hook measures a list and reports it to an OverflowListModel. This is used in overflow detection.

(
  model: ,
  elemProps: {},
  ref: React.Ref
) => {
  ref: (instance:    | null) => void;
}

ActionBar.Item

ActionBar.Item is a button element, by default it's a SecondaryButton unless an as prop is passed.

<ActionBar.Item as={PrimaryButton} onClick={() => console.log('first action')}>
  First Action
</ActionBar.Item>

Props

Props extend from . Changing the as prop will change the element interface.

Name	Type	Description
`children`	`ReactNode`	The contents of the action item. This will be the accessible name of the action for screen readers. <ActionBar.Item>First Action</ActionBar.Item>
`data-id`	`string`	The identifier of the action. This identifier will be used for correct overflow behavior. If this property is not provided, it will default to a string representation of the the zero-based index of the Item when it was initialized.
`as`	`React.ElementType`	Optional override of the default element used by the component. Any valid tag or Component. If you provided a Component, this component should forward the ref using `React.forwardRef`and spread extra props to a root element. Note: Not all elements make sense and some elements may cause accessibility issues. Change this value with care.
`ref`	`React.Ref<R = >`	Optional ref. If the component represents an element, this ref will be a reference to the real DOM element of the component. If `as` is set to an element, it will be that element. If `as` is a component, the reference will be to that component (or element if the component uses `React.forwardRef`).
`model`		Optional model to pass to the component. This will override the default model created for the component. This can be useful if you want to access to the state and events of the model, or if you have nested components of the same type and you need to override the model provided by React Context.
`elemPropsHook`	`( model: , elemProps: TProps ) => HTML Attributes`	Optional hook that receives the model and all props to be applied to the element. If you use this, it is your responsibility to return props, merging as appropriate. For example, returning an empty object will disable all elemProps hooks associated with this component. This allows finer control over a component without creating a new one.

useActionBarItem

(
  ,

)

ActionBar.OverflowButton

Layout Component

ActionBar.OverflowButton supports all props from thelayout component.

Props

Props extend from button. Changing the as prop will change the element interface.

Name	Type	Description	Default
`aria-label`	`string`
`variant`	`'inverse' \| undefined`	The variant of the SecondaryButton.
`size`		There are four button sizes: `extraSmall`, `small`, `medium`, and `large`. If no size is provided, it will default to `medium`.	`'medium'`
`icon`		The icon of the Button. Note: not displayed at `small` size
`iconPosition`		Button icon positions can either be `start` or `end`. If no value is provided, it defaults to `start`.	`'start'`
`shouldMirrorIcon`	`boolean`	If set to `true`, transform the icon's x-axis to mirror the graphic	`false`
`children`	`ReactNode`
`theme`
`grow`	`boolean`	True if the component should grow to its container's width. False otherwise.
`fill`		The fill color of the SystemIcon. This overrides `color`.
`color`		The color of the SystemIcon. This defines `accent` and `fill`. `color` may be overriden by `accent` and `fill`.
`styles`
`shouldMirror`	`boolean`	If set to `true`, transform the SVG's x-axis to mirror the graphic	`false`
`background`		The background color of the SystemIcon.
`accent`		The accent color of the SystemIcon. This overrides `color`.
`accentHover`		The accent color of the SystemIcon on hover. This overrides `colorHover`.
`backgroundHover`		The background color of the SystemIcon on hover.
`colorHover`		The hover color of the SystemIcon. This defines `accentHover` and `fillHover`. `colorHover` may be overriden by `accentHover` and `fillHover`.
`fillHover`		The fill color of the SystemIcon on hover. This overrides `colorHover`.
`colors`		Override default colors of a button. The default will depend on the button type
`fillIcon`	`boolean`	Whether the icon should received filled (colored background layer) or regular styles. Corresponds to `toggled` in ToolbarIconButton
`as`	`React.ElementType`	Optional override of the default element used by the component. Any valid tag or Component. If you provided a Component, this component should forward the ref using `React.forwardRef`and spread extra props to a root element. Note: Not all elements make sense and some elements may cause accessibility issues. Change this value with care.	`button`
`ref`	`React.Ref<R = button>`	Optional ref. If the component represents an element, this ref will be a reference to the real DOM element of the component. If `as` is set to an element, it will be that element. If `as` is a component, the reference will be to that component (or element if the component uses `React.forwardRef`).
`model`		Optional model to pass to the component. This will override the default model created for the component. This can be useful if you want to access to the state and events of the model, or if you have nested components of the same type and you need to override the model provided by React Context.
`elemPropsHook`	`( model: , elemProps: TProps ) => HTML Attributes`	Optional hook that receives the model and all props to be applied to the element. If you use this, it is your responsibility to return props, merging as appropriate. For example, returning an empty object will disable all elemProps hooks associated with this component. This allows finer control over a component without creating a new one.

useActionBarOverflowButton

(
  (
    model: ,
    elemProps: {},
    ref: React.Ref
  ) => {
    aria-haspopup: boolean;
  },
  ,
  (
    (model: ) => ,

  )
)

Basic type information:

Menu

Model

useActionBarModel

useActionBarModel (config: ):

Accessibility Guidelines

Keyboard Interaction

Each Button in the Action Bar must have a focus indicator that is highly visible against the background and against the non-focused state. Refer to Accessible Colors for more information.

Action Bar must support the following keyboard interactions:

Tab: focus each Button element in the Action Bar
Enter or Space: activate focused Button element
Esc: dismiss overflow menu of the action bar (if applicable)
[With overflow] Up Arrow or Down Arrow: navigates among the overflow menu items

Action Bar must communicate the following to users:

The accessible name for each button in the action bar
The “more actions” icon button has an attached menu or “popup” (if applicable)
Total number of menu items in the overflow menu (if applicable)

Design Annotations Needed

No design annotations are needed for Action Bar

Implementation Markup Needed

An aria-label string is required for the overflow icon-only Button variants and accessible tooltips can show the icon's name for everyone.
Action Bar can be rendered as a <section> element with an aria-label string to enable a landmark region for screen reader users.
[Included in component] The overflow icon-only Button variants require an aria-haspopup=”true” and aria-expanded attribute for the attached menu.
[Included in component] The menu container must have an ARIA role=“menu” attribute.
[Included in component] All child elements inside the menu container must have an ARIA role=“menuitem” attribute.

Content Guidelines

When naming buttons within an Action Bar, refer to the Buttons and Calls to Action section of the Content Style Guide.

Figma

Sources

Figma

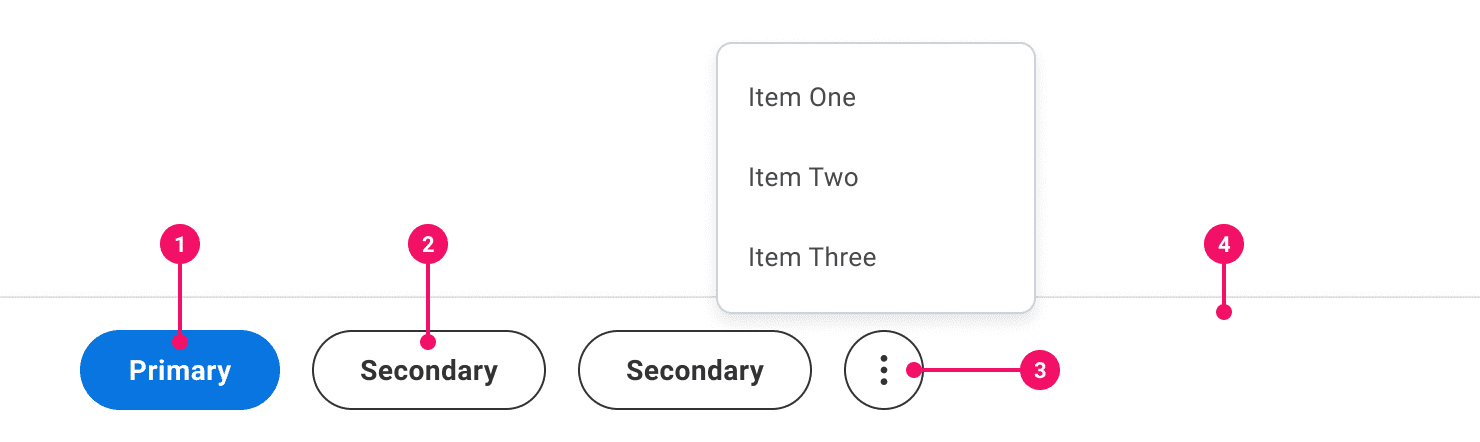

Anatomy

Primary Button: Used as the most important action on a page or task.
Secondary Button: Actions that are less important than Primary Buttons.
Overflow Button: A Secondary Icon-Only Button that opens an Overflow Menu.
Bar Container: Container that groups buttons, anchored to the bottom of the screen.

Variations

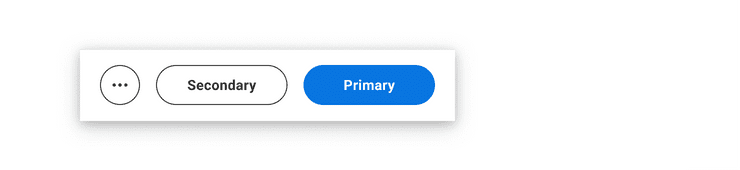

Mobile

Mobile action bars can contain up to one Primary Button and one Secondary Button, with additional actions placed in an Overflow Menu.

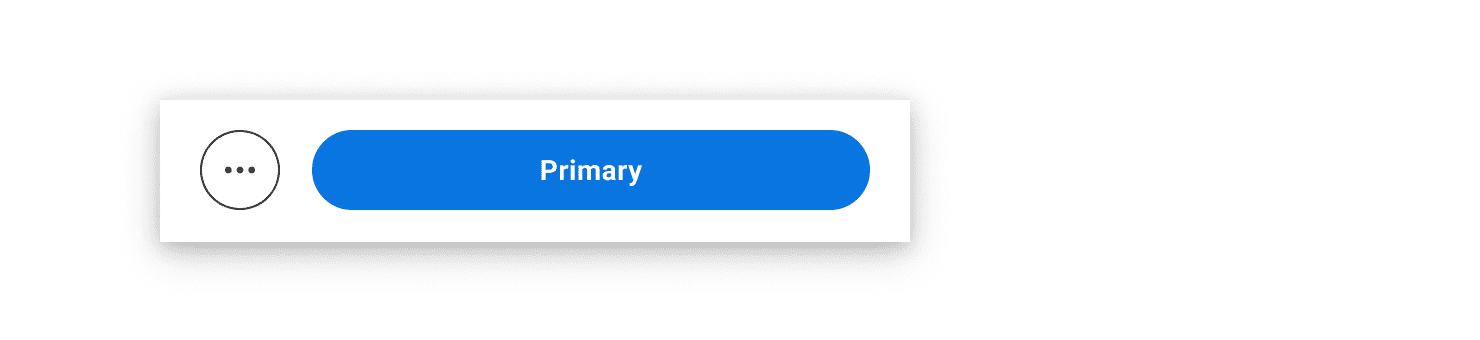

Overflow

In the case of more than two calls to action in the bar, any overflowing actions should be placed in the Overflow Menu. Tapping on the Overflow Button will open a Menu with those Secondary or Tertiary Actions.

If the text within the Primary Button is too long to fit, the Secondary or Tertiary button(s) should move into the Overflow Menu to allow room for a full-width Primary Button.

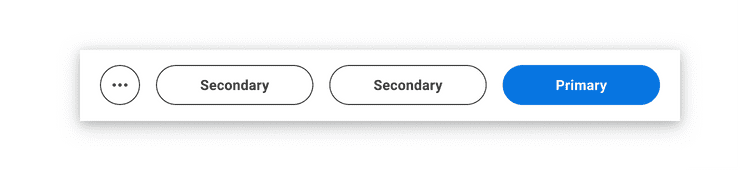

Tablet

Action Bars on tablets may include up to one Primary and two Secondary Buttons.

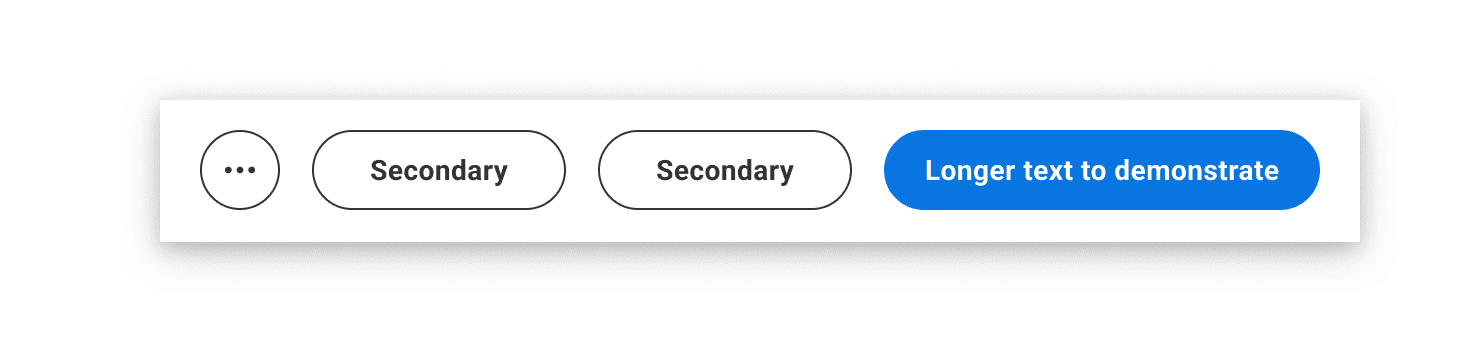

Overflow

In the case of more than two calls to action in the bar, all overflowing actions should be placed in the Overflow Menu. Tapping on the Overflow Button will open a Menu containing those Secondary or Tertiary Actions.

If the Primary Button length is too long to fit the Secondary Button beside it, the Secondary Button should be placed in the Overflow Menu.

Usage Guidance

There should only be one Primary Button in the Action Bar. If there are additional actions, use Secondary Buttons. Tertiary Buttons should only appear as actions in the Overflow Menu.
Action Bars are placed at the bottom of the screen. If there is scrollable content, the Action Bar should remain sticky as the user scrolls.
Although actions may change, the placement of the Action Bar should persist until the task is successfully submitted.
Mobile Action Bars can contain up to two visible actions. If there are more than two actions, hide the third and any other actions in an Overflow Menu that is launched by tapping on the Icon Only Secondary Button Variant.
Tablet Action Bars can contain up to three visible actions. If there are more than three actions, hide the fourth and any other actions in an Overflow Menu that is launched by tapping on the Icon Only Secondary Button Variant.
Limit the Overflow Menu to a maximum of seven items.
Group buttons in Action Bars logically, either by usage or ordered by importance.

When to Use

Use Action Bars for tasks that require navigating between pages, saving progress, submitting a task, or canceling a task.

When to Use Something Else

Consider taking a Button outside of the Action Bar if the action is not related to the progress or status of a task.
Consider using a Tertiary Button instead of an Action Bar if an action is less popular or less important.
If actions are not related to a full screen task, consider using a group of buttons instead.

Mobile Guidance

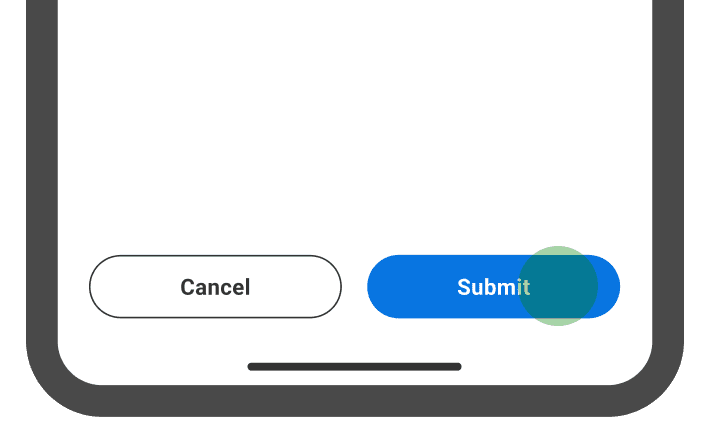

Button Placement

Mobile Action Bars place Primary Buttons on the right-most side to account for a majority of right handed users.

Place Primary Buttons on the right for easy access.

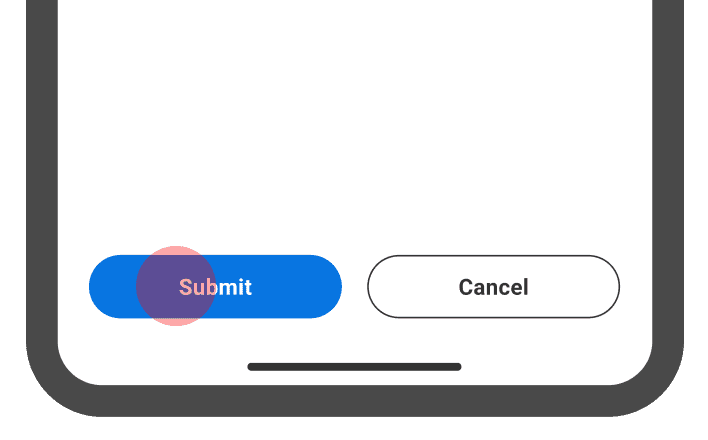

Don't

Align Primary Buttons to the left of Action Bar

Button Resizing

Buttons in Mobile Action Bars stretch to fit the entire screen width, respecting padding and spacing tokens.

Only Show Depth if Content is Scrollable

If there is scrollable content, provide scrolling indication through use of Depth. If there is no scrollable content, no Depth is used on the Action Bar with a plain French Vanilla 100 background.

Show Depth if there is scrollable content.

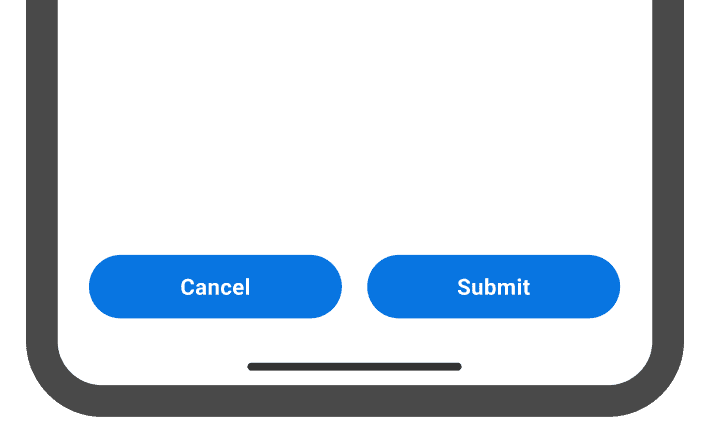

Don't

Apply Depth if there is no scrollable content

Device Considerations

8dp of bottom padding is taken away from the action bar if it’s rendered on a iPhoneX to account for the extra spacing for the home indicator.

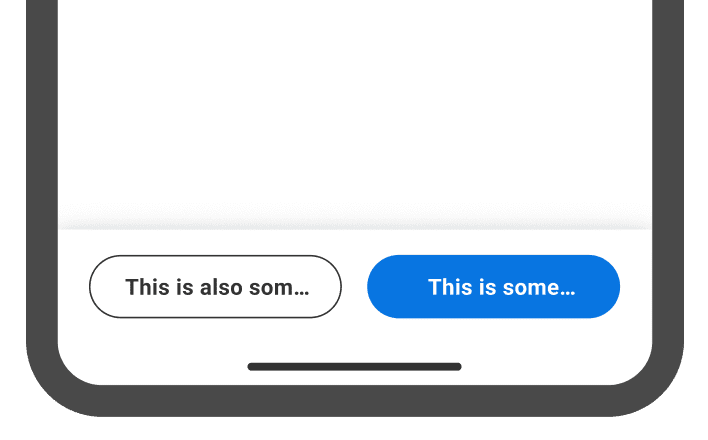

Text Overflow

Buttons within Actions Bars should never wrap to multiple lines. Instead, truncate text when Buttons reach screen margins.

Truncate text when Buttons reach Action Bar margins.

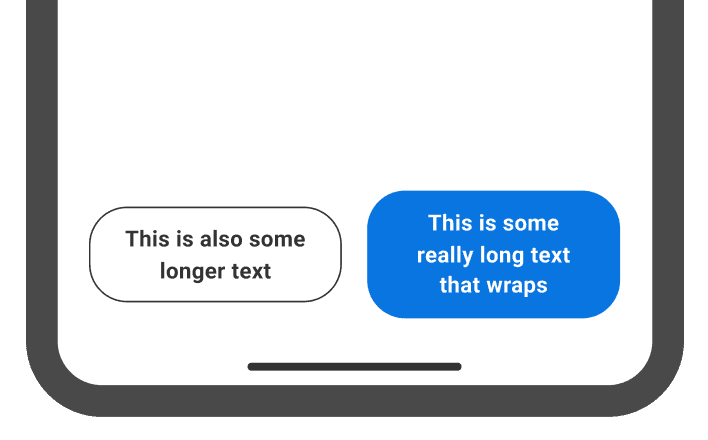

Don't

Have Button text wrap to multiple lines.

API Documentation

Component Definition

actionBarV2(primaryAction:otherActions:style:isContentScrollable:)

Methods

public func actionBarV2(
    primaryAction: ActionBarItemModel,
    otherActions: [ActionBarItemModel],
    style: ActionBarV2.ActionBarStyle = .regular,
    isContentScrollable: Bool
) -> some View

Adds an ActionBar to any content as per Workday design requirements.

Parameters

Name	Description
primaryAction	`ActionBarItemModel` that represents the Primary Action
otherActions	Non-primary `ActionBarItemModels` that would be displayed as Secondary or Overflow actions based on the `ActionBarStyle`.
style	ActionBarStyle that decides the layout of various actions in the ActionBar.
isContentScrollable	Boolean that indicates whether the parent view’s content is scrollable. If yes, ActionBar would have a specific styling with shadow on top.

Accessibility Guidelines

Refreshed mobile guidelines will be coming soon!

Content Guidelines

When naming buttons within an Action Bar, refer to the Buttons and Calls to Action section of the Content Style Guide.

Figma

Sources

Figma

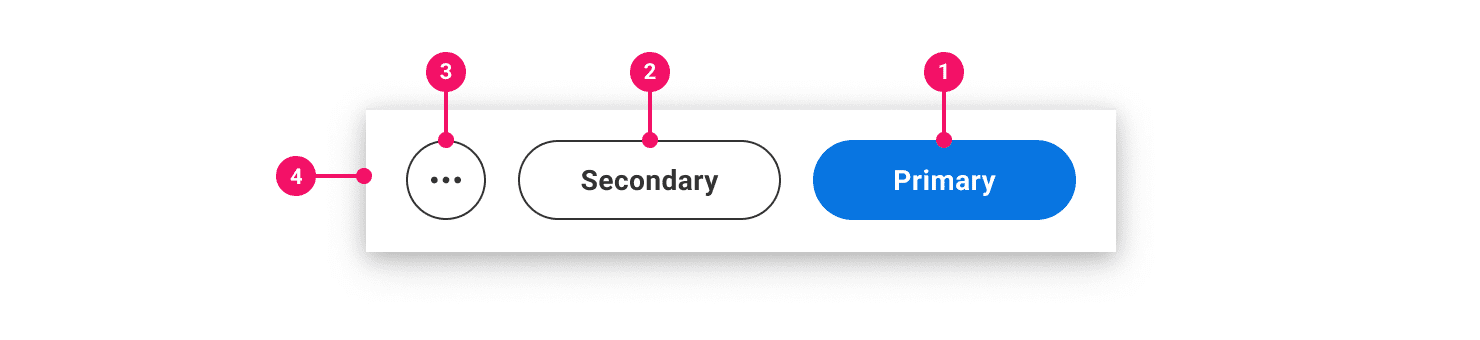

Anatomy

Primary Button: Used as the most important action on a page or task.
Secondary Button: Actions that are less important than Primary Buttons.
Overflow Button: A Secondary Icon-Only Button that opens an Overflow Menu.
Bar Container: Container that groups buttons, anchored to the bottom of the screen.

Variations

Mobile

Mobile action bars can contain up to one Primary Button and one Secondary Button, with additional actions placed in an Overflow Menu.

Overflow

In the case of more than two calls to action in the bar, all overflowing actions should be placed in the Overflow Menu. Tapping on the Overflow Button will open a Menu with those Secondary or Tertiary Actions.

If the text within the Primary Button is too long to fit, the Secondary or Tertiary button(s) should move into the Overflow Menu to allow room for a full-width Primary Button.

Tablet

Action Bars on the tablet may include up to one Primary and two Secondary Buttons.

Overflow

If the Primary Button length is too long to fit the Secondary Button beside it, the Secondary Button should be placed in the Overflow Menu.

Usage Guidance

There should only be one Primary Button in the Action Bar. If there are additional actions, use Secondary Buttons. Tertiary Buttons should only appear as actions in the Overflow Menu.
Action Bars are placed at the bottom of the screen. If there is scrollable content, the Action Bar should remain sticky as the user scrolls.
Although actions may change, the placement of the Action Bar should persist until the task is successfully submitted.
Mobile Action Bars can contain up to two visible actions. If there are more than two actions, hide the third and any other actions in an Overflow Menu that is launched by tapping on the Icon Only Secondary Button Variant.
Tablet Action Bars can contain up to three visible actions. If there are more than three actions, hide the fourth and any other actions in an Overflow Menu that is launched by tapping on the Icon Only Secondary Button Variant.
Limit the Overflow Menu to a maximum of seven items.
Group buttons in Action Bars logically, either by usage or ordered by importance.

When to Use

Use Action Bars for tasks that require navigating between pages, saving progress, submitting a task, or canceling a task.

When to Use Something Else

Consider taking a Button outside of the Action Bar if the action is not related to the progress or status of a task.
Consider using a Tertiary Button instead of an Action Bar if an action is less popular or less important.
If actions are not related to a full screen task, consider using a group of buttons instead.

Mobile Guidance

Button Placement

Mobile Action Bars place Primary Buttons on the right-most side to account for a majority of right handed users.

Place Primary Buttons on the right for easy access.

Don't

Align Primary Buttons to the left of Action Bar

Button Resizing

Buttons in Mobile Action Bars stretch to fit the entire screen width, respecting padding and spacing tokens.

Only Show Depth if Content is Scrollable

If there is scrollable content, provide scrolling indication through use of Depth. If there is no scrollable content, no Depth is used on the Action Bar with a plain French Vanilla 100 background.

Show Depth if there is scrollable content.

Don't

Apply Depth if there is no scrollable content

Device Considerations

8dp of bottom padding is taken away from the action bar if it’s rendered on a iPhoneX to account for the extra spacing for the home indicator.

Text Overflow

Buttons within Actions Bars should never wrap to multiple lines. Instead, truncate text when Buttons reach screen margins.

Truncate text when Buttons reach Action Bar margins.

Don't

Have Button text wrap to multiple lines.

API Documentation

Component Definition

@Composable
fun [ActionBarUiComponent](
    modifier: Modifier = Modifier,
    numButtonsShown: [Int] = 1,
    isScrollable: [Boolean](https://kotlinlang.org/api/latest/jvm/stdlib/kotlin/-boolean/index.html) = true,
    buttonList: [List]&lt;[ActionBarButtonItem]&gt;
) {

Parameters

Name	Description
numButtonsShown	Number of individual buttons to be shown Phones will be restricted to 2 buttons and any additional buttons will be pushed into the menu
isScrollable	Boolean to let the component know if the screen is scrollable. When the screen is scrollable, the action bar will have a divider above the action bar.
buttonList	List of button name, onClickAction pairs Given a list of onClickAction pairs, the first pair on the list will be the primary action button

Accessibility Guidelines

Refreshed mobile guidelines will be coming soon!

Content Guidelines

When naming buttons within an Action Bar, refer to the Buttons and Calls to Action section of the Content Style Guide.

Can't Find What You Need?

Check out our FAQ section which may help you find the information you're looking for. For further information, contact the #canvas or #canvas-kitchannels on Slack.

FAQ Section

Action Bar

Anatomy

Usage Guidance

When to Use

When to Use Something Else

Examples

Basic Example

Icons Example

Delete Action Example

Overflow Example

Change Action Bar container size

Component API

ActionBar

Props

ActionBar.List

Layout Component

Props

useOverflowListMeasure

ActionBar.Item

Props

useActionBarItem

ActionBar.OverflowButton

Layout Component

Props

useActionBarOverflowButton

ActionBar.Menu

Model

useActionBarModel

Accessibility Guidelines

Keyboard Interaction

Screen Reader Interaction

Design Annotations Needed

Implementation Markup Needed

Content Guidelines

Anatomy

Variations

Mobile

Overflow

Tablet

Overflow

Usage Guidance

When to Use

When to Use Something Else

Mobile Guidance

Button Placement

Button Resizing

Only Show Depth if Content is Scrollable

Device Considerations

Text Overflow

API Documentation

Component Definition

Methods

Parameters

Accessibility Guidelines

Content Guidelines

Anatomy

Variations

Mobile

Overflow

Tablet

Overflow

Usage Guidance

When to Use

When to Use Something Else

Mobile Guidance

Button Placement

Button Resizing

Only Show Depth if Content is Scrollable

Device Considerations

Text Overflow

API Documentation

Component Definition

Parameters

Accessibility Guidelines

Content Guidelines

Can't Find What You Need?
