Button

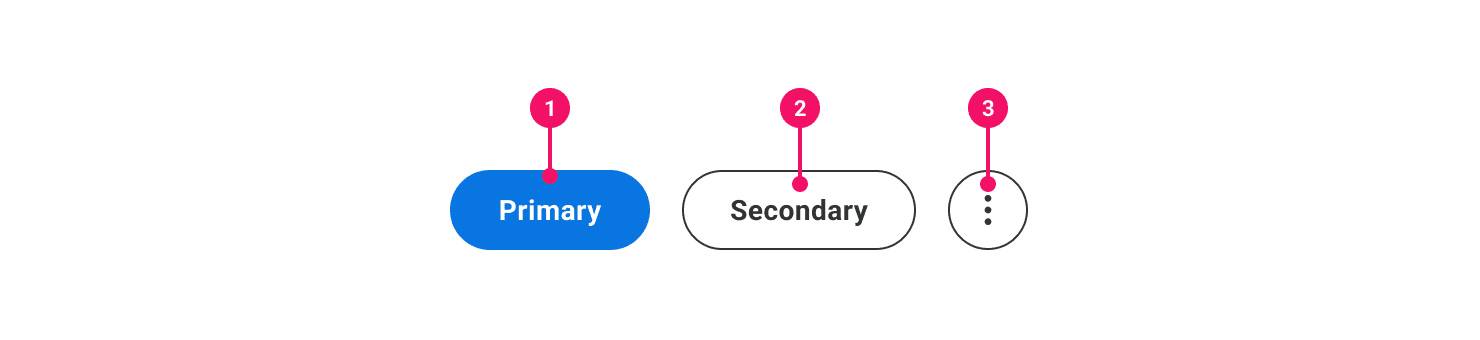

Anatomy

1. Container (Conditional): Houses the contents of the Button. Visual appearance differs based on button type.
2. Label (Conditional): Specific text describing the action. Refer to the Buttons and Calls to Action section of the Content Style Guide.
3. Icon (Conditional): Supplementary visual indicator that can be positioned alone or added to the left or right of the label. Supplemental icons are used to promote the purpose of the Button.

Usage Guidance

• Buttons should indicate an action.
• They should be discoverable, easy to identify, and specific.
• Make Buttons look and feel clickable.
• Icons can be used alone or added to the left or right of the label. If used, the icon should signify what the Button does.
• Use icon-only variants in dense environments or when space is limited.
• Use accessible tooltips with icon-only variants to help explain ambiguous icons for everyone.
• When deciding which Button to use, consider the level of priority of the action, as well as how much visual emphasis the Button should have in the context of the page it will live on. Be intentional and refer to the examples below to determine which is right for your use case.

When to Use Something Else

• Use Hyperlinks within a paragraph to navigate to another page. See the Button or Hyperlink section of the Buttons and Calls to Action pattern for more information and best practices.
• Consider using checkbox, switch, or segmented control when a component is needed that can capture 2 togglable states.

Examples

PrimaryButton

The example below shows multiple instances of a PrimaryButton with various icon configurations.

Primary Buttons also have an inverse variant. While it looks similar to the default Secondary Button, the default outline as well as the hover and focus states are different. Use this variant when you need to place a Primary Button on a dark or colorful background such as blueberry400.

SecondaryButton

The example below shows multiple instances of a SecondaryButton with various icon configurations.

Secondary Buttons also have an inverse variant. Use this when you need to place a Secondary Button on a dark or colorful background such as blueberry400.

TertiaryButton

The example below shows multiple instances of a TertiaryButton with various icon configurations.

Tertiary Buttons also have an inverse variant. Use this when you need to place a Tertiary Button on a dark or colorful background such as blueberry400.

DeleteButton

Use sparingly for destructive actions that will result in data loss, can’t be undone, or will have significant consequences. They commonly appear in confirmation dialogs as the final confirmation before deleting.

Custom Styles

We understand that there are instances in which consumers might need to adjust styles for specific use cases. All of our buttons extend our lower level base button props which extends style properties that come from Box. Below are some examples in which you can overwrite styles for all of our buttons. Please use this sparingly and try to adhere to the design system.

Accessible Use of the as Prop

Like many of our components, Buttons accept an as prop, which lets you change the underlying semantic element - usually an <a>, or a <button>. This should be done with caution to ensure the best accessibility. Generally, <button> elements should be used for actions, and <a> elements should be used for navigation.

Component API

Specifications

Accessibility Guidelines

How Buttons Impact the Accessible Experience

When buttons are disabled on the UI, color contrast guidelines do not apply to disabled components. Minimum contrast guidelines set in WCAG 2.1 explicitly state disabled components are exempt from the guideline.

When identical buttons are used repeatedly on a screen, users must correctly identify the context around the buttons that cannot be distinguished from one another.

• For example: Pencil icon buttons used repeatedly on a profile screen, each designed to edit a section of the profile. Providing uniquely descriptive names (e.g. “Edit photo”, “Edit contact info”) for each icon button can be valuable for screen reader users.

When icons are used inside of buttons containing text, a text alternative is only necessary when the icon is communicating something about the button.

• For example: A ‘+’ icon used in a skill pill named “communication” signals an action that is not expressed in the text.
• On the other hand: An icon of an eye used to decorate a “View Details” button is redundant and should be hidden from screen readers.

Keyboard Interaction

Each Button should have a focus indicator that is highly visible against the background and against the non-focused state. Refer to Accessible Colors for more information.

Buttons should support the following keyboard interactions:

• Tab: Focus on a button
• Enter or Space: Activate the button

Screen Reader Interaction

Buttons should communicate the following to users:

• The intended purpose, or function, of the Button
• If applicable, the toggle state of the Button when it has 2 states
• If applicable, an instruction that the Button will open a menu

Design Annotations Needed

• Write accessible name for icon-only button variants. Read more about non-text content.

Implementation Markup Needed

• An aria-label string is required for icon-only buttons and accessible tooltips can show the icon's name for everyone.
• If the button has 2 toggle states, an aria-pressed attribute is required.
• If the button has an attached menu, an aria-haspopup=”true” attribute is required.
• [Included in component] Decorative <svg> icons are hidden from assistive technology with role=”presentation” and focusable=”false”.

Content Guidelines

• See the Buttons and Calls to Action page in the UI Text section of the Content Style Guide for button language guidelines.
• When writing Tooltips to pair with icon-only variants, refer to the Tooltips section of the Content Style Guide.

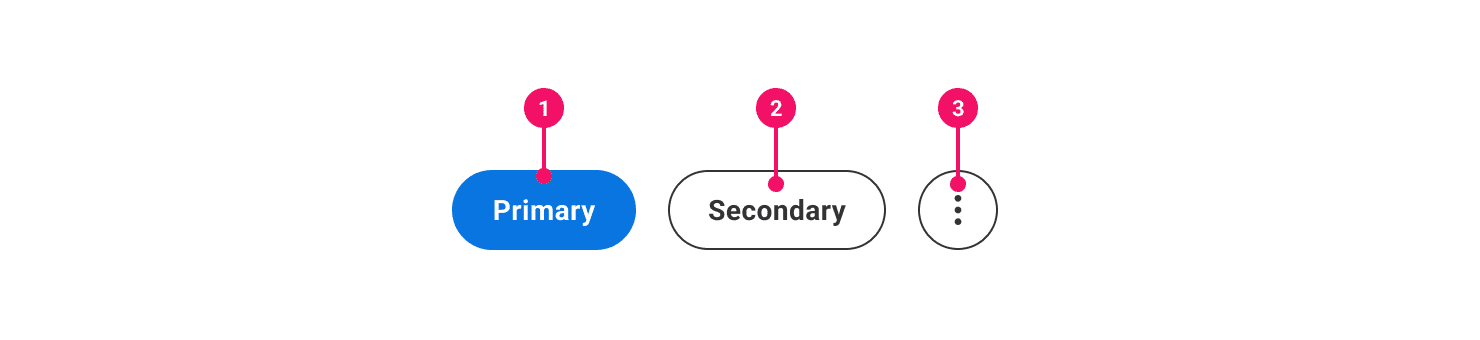

Anatomy

1. Container (Conditional): Houses the contents of the Button. Visual appearance differs based on button type.
2. Label: Specific text describing the action. Refer to the Buttons and Calls to Action section of the Content Style Guide.
3. Icon (Optional): Supplementary visual indicator positioned to the left or right of the label used to promote the purpose of the Button.

Interaction States

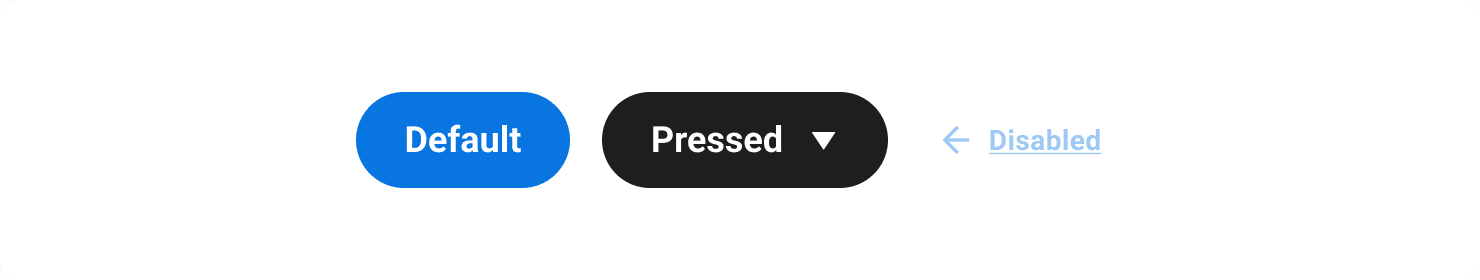

Mobile Buttons have the Default/Inactive, Pressed, and Disabled interaction states.

Usage Guidance

• Buttons should indicate an action.
• They should be discoverable, easy to identify, and specific.
• Make Buttons look and feel tappable.
• Adding an icon to the left or right of the label is optional. If used, the icon should signify what the Button does.
• When deciding which Button to use, consider the level of priority of the action, as well as how much visual emphasis the Button should have in the context of the page it will live on. Be intentional and refer to the examples below to determine which button type is right for your use case.

When to Use Something Else

• Use Hyperlinks within a paragraph to navigate to another page. See the Button or Hyperlink section of the Buttons and Calls to Action pattern for more information and best practices.

Mobile Guidance

• Large Buttons on Mobile have larger typography to increase readability on smaller screens
• Mobile Buttons have reduced horizontal padding to decrease the likelihood of truncated text.
• XS Buttons are not supported on Mobile.

Tap Targets

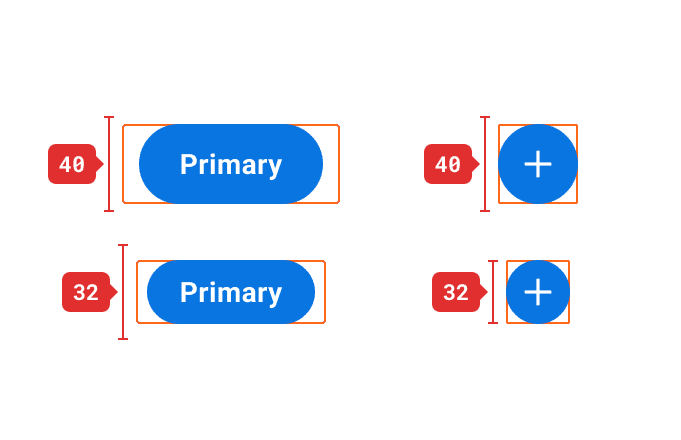

Mobile Buttons have a minimum tap target height of 48dp to ensure that they are easy to interact with. The entire area of the Button should be tappable. On Medium and Small Size Buttons, an additional tappable top and bottom padding are added to meet this 48dp tappable height requirement. Make sure spacing between Buttons and other UI elements is enough to avoid intersecting tap targets.

Icon Placement

Icons can be used within Buttons to help reinforce the meaning of their labels, or to hint as to what tapping on the Button will accomplish.

• No Icon: Used when no icons are needed to reinforce the meaning of the Button or describe interactivity.
• Leading Icon: Icons placed in front of a label are used to reinforce the meaning of the Button label and are purely descriptive. For example, adding a plus icon will reinforce the actions of an "Add" button.
• Trailing Icon: Icons placed to the right of a label are used to hint the interaction to follow after tapping on the Button. For example, a Button with a "Caret Down" icon might open a menu with more options.
• Icon Only: Used for dense environments, or when space is limited on the screen.

Truncation

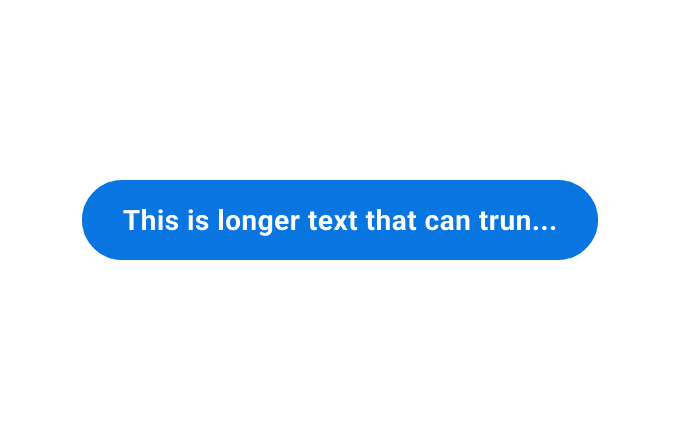

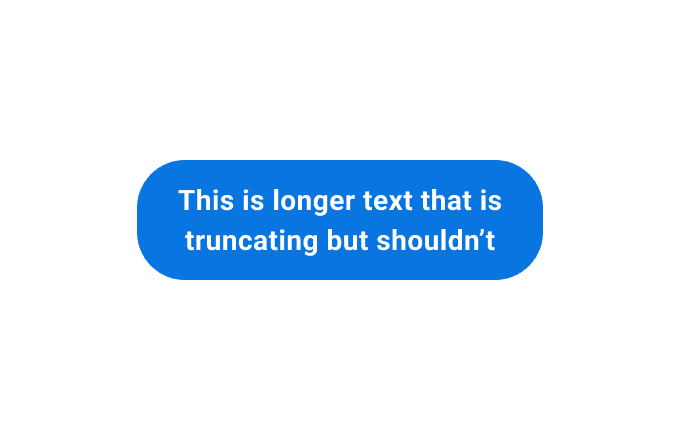

Button labels should be kept short and concise. Each Button should represent a single action the user can take, never multiple. However, do be mindful if a single action triggers multiple system processes (e.g. “Squash and Merge” closes a branch and moves it to another one in many coding environments).

Variations

Primary Button

Primary Buttons are high emphasis. Use minimally to draw attention to the highest priority action. Too many primary buttons make it confusing for the user to understand what action they should take. Not all screens require a Primary Button.

Primary Buttons have three sizes: small, medium, and large. Icons are supported for every size and can be positioned to the left or right.

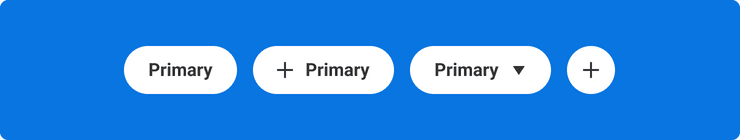

Primary Buttons also have an inverse variant. While it looks similar to the default Secondary Button, the default outline as well as the hover and focus states are different. Use this variant when you need to place a Primary Button on a dark or colorful background such as blueberry400.

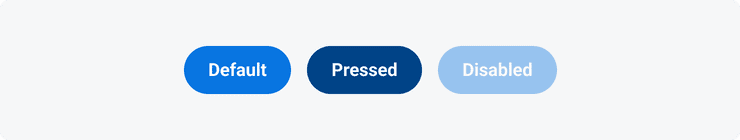

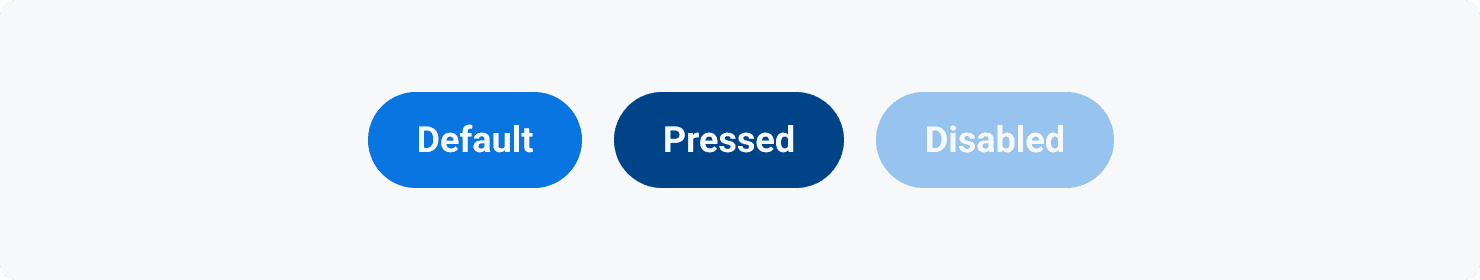

Primary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

Secondary Button

Secondary Buttons have a medium level of emphasis. Use them for non-critical actions. Secondary Buttons can be used on most pages without restrictions and work well for multiple actions of equal weight. They can be used in conjunction with a Primary Button or independently.

Secondary Buttons have three sizes: small, medium, and large. Icons are supported for every size and can be positioned to the left or right.

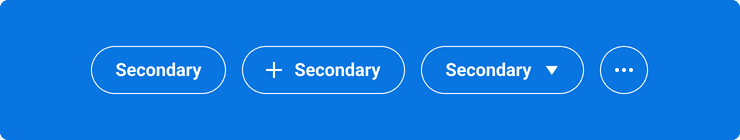

Secondary Buttons also have an inverse variant. Use this when you need to place a Secondary Button on a dark or colorful background such as blueberry400.

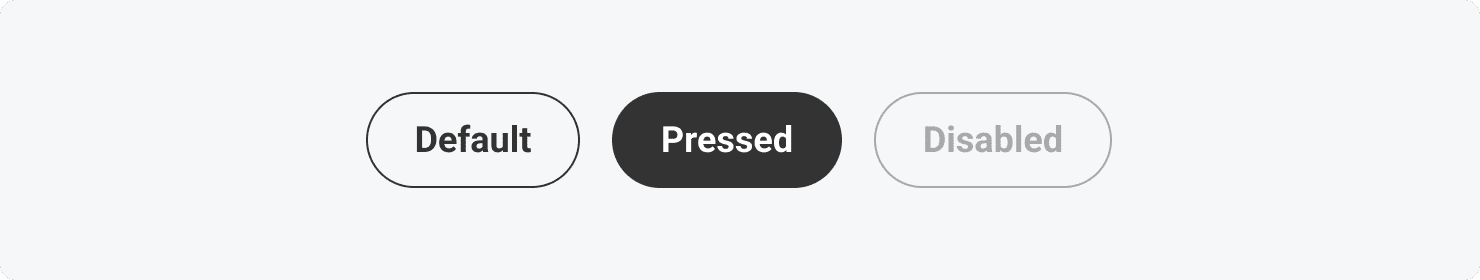

Secondary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

Tertiary Button

Tertiary Buttons have the lowest emphasis. Use for less important actions that the user may not often be looking to do. Tertiary Buttons have lower prominence as its container is not visible until it is interacted with. Use Tertiary Buttons for supplemental actions such as “View More”, “Read More” or “Select a File”. Tertiary Buttons are frequently used on List Items.

Tertiary Buttons have two sizes on mobile: small, and medium. Icons are supported for every size and can be positioned to the left or right with the iconPosition prop.

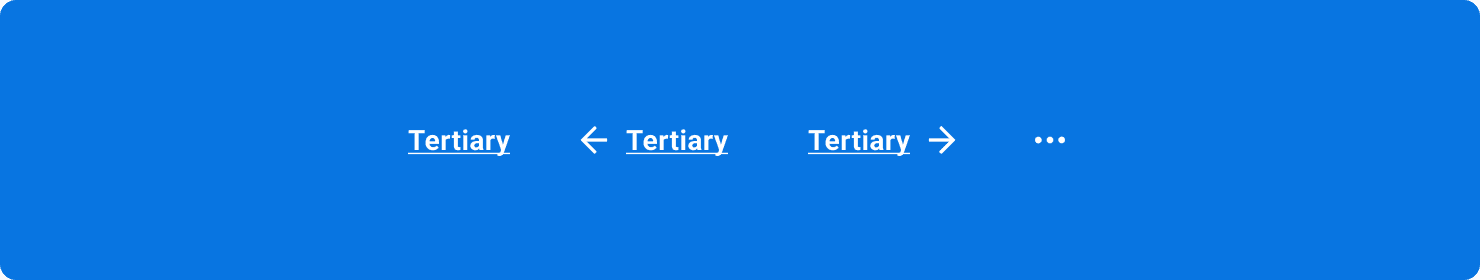

Tertiary Buttons also have an inverse variant. Use this when you need to place a Tertiary Button on a dark or colorful background such as blueberry400.

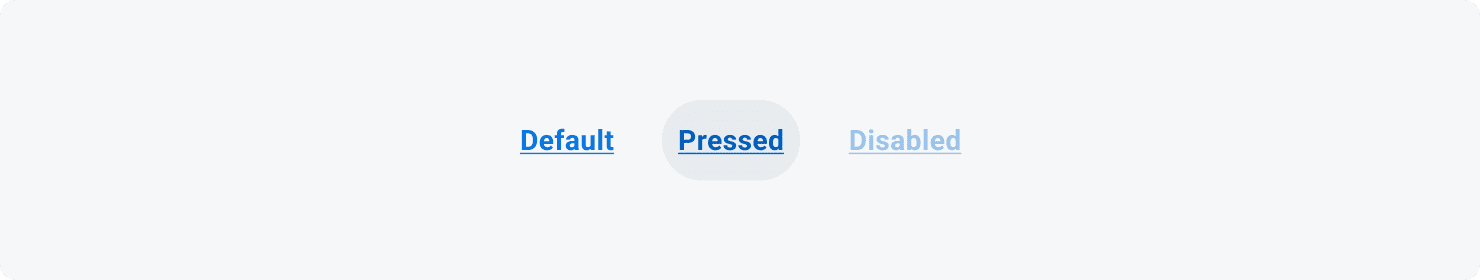

Tertiary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

API Documentation

Primary Button

PrimaryButtonStyle

public struct PrimaryButtonStyle: BasePrimitiveButtonStyle

CanvasKit design system primary button style.

Methods

init(context:size:isIconOnly:iconName:iconAlignment:iconAccessibilityLabel:)

public init(
    context: Binding<SemanticContext>,
    size: ButtonSize,
    isIconOnly: Bool,
    iconName: String?,
    iconAlignment: HorizontalAlignment,
    iconAccessibilityLabel: String
)

Parameters

makeBody(configuration:)

public func makeBody(configuration: Configuration) -> some View

Parameters

Secondary Button

SecondaryButtonStyle

public struct SecondaryButtonStyle: BasePrimitiveButtonStyle

CanvasKit design system secondary button style.

Methods

init(context:size:isIconOnly:iconName:iconAlignment:iconAccessibilityLabel:)

public init(
    context: Binding<SemanticContext>,
    size: ButtonSize,
    isIconOnly: Bool,
    iconName: String?,
    iconAlignment: HorizontalAlignment,
    iconAccessibilityLabel: String
)

Parameters

makeBody(configuration:)

public func makeBody(configuration: Configuration) -> some View

Parameters

Tertiary Button

TertiaryButtonStyle

public struct TertiaryButtonStyle: BasePrimitiveButtonStyle

CanvasKit design system tertiary button style.

Methods

init(context:size:isIconOnly:iconName:iconAlignment:iconAccessibilityLabel:)

public init(
    context: Binding<SemanticContext>,
    size: ButtonSize,
    isIconOnly: Bool,
    iconName: String?,
    iconAlignment: HorizontalAlignment,
    iconAccessibilityLabel: String
)

Parameters

makeBody(configuration:)

public func makeBody(configuration: Configuration) -> some View

Parameters

Accessibility Guidelines

Refreshed mobile guidelines will be coming soon!

Content Guidelines

• See the Buttons and Calls to Action page in the UI Text section of the Content Style Guide for button language guidelines.
• When writing Tooltips to pair with Icon Buttons, refer to the Tooltips section of the Content Style Guide.

Anatomy

1. Container (Conditional): Houses the contents of the Button. Visual appearance differs based on button type.
2. Label: Specific text describing the action. Refer to the Buttons and Calls to Action section of the Content Style Guide.
3. Icon (Optional): Supplementary visual indicator positioned to the left or right of the label used to promote the purpose of the Button.

Interaction States

Mobile Buttons have the Default/Inactive, Pressed, and Disabled interaction states.

Usage Guidance

• Buttons should indicate an action.
• They should be discoverable, easy to identify, and specific.
• Make Buttons look and feel tappable.
• Adding an icon to the left or right of the label is optional. If used, the icon should signify what the Button does.
• When deciding which Button to use, consider the level of priority of the action, as well as how much visual emphasis the Button should have in the context of the page it will live on. Be intentional and refer to the examples below to determine which button type is right for your use case.

When to Use Something Else

• Use Hyperlinks within a paragraph to navigate to another page. See the Button or Hyperlink section of the Buttons and Calls to Action pattern for more information and best practices.

Mobile Guidance

• Large Buttons on Mobile have larger typography to increase readability on smaller screens
• Mobile Buttons have reduced horizontal padding to decrease the likelihood of truncated text.
• XS Buttons are not supported on Mobile.

Tap Targets

Mobile Buttons have a minimum tap target height of 48dp to ensure that they are easy to interact with. The entire area of the Button should be tappable. On Medium and Small Size Buttons, an additional tappable top and bottom padding are added to meet this 48dp tappable height requirement. Make sure spacing between Buttons and other UI elements is enough to avoid intersecting tap targets.

Icon Placement

Icons can be used within Buttons to help reinforce the meaning of their labels, or to hint as to what tapping on the Button will accomplish.

• No Icon: Used when no icons are needed to reinforce the meaning of the Button or describe interactivity.
• Leading Icon: Icons placed in front of a label are used to reinforce the meaning of the Button label and are purely descriptive. For example, adding a plus icon will reinforce the actions of an "Add" button.
• Trailing Icon: Icons placed to the right of a label are used to hint the interaction to follow after tapping on the Button. For example, a Button with a "Caret Down" icon might open a menu with more options.
• Icon Only: Used for dense environments, or when space is limited on the screen.

Truncation

Button labels should be kept short and concise. Each Button should represent a single action the user can take, never multiple. However, do be mindful if a single action triggers multiple system processes (e.g. “Squash and Merge” closes a branch and moves it to another one in many coding environments).

Variations

Primary Button

Primary Buttons are high emphasis. Use minimally to draw attention to the highest priority action. Too many primary buttons make it confusing for the user to understand what action they should take. Not all screens require a Primary Button.

Primary Buttons have three sizes: small, medium, and large. Icons are supported for every size and can be positioned to the left or right.

Primary Buttons also have an inverse variant. While it looks similar to the default Secondary Button, the default outline as well as the hover and focus states are different. Use this variant when you need to place a Primary Button on a dark or colorful background such as blueberry400.

Primary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

Secondary Button

Secondary Buttons have a medium level of emphasis. Use them for non-critical actions. Secondary Buttons can be used on most pages without restrictions and work well for multiple actions of equal weight. They can be used in conjunction with a Primary Button or independently.

Secondary Buttons have three sizes: small, medium, and large. Icons are supported for every size and can be positioned to the left or right.

Secondary Buttons also have an inverse variant. Use this when you need to place a Secondary Button on a dark or colorful background such as blueberry400.

Secondary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

Tertiary Button

Tertiary Buttons have the lowest emphasis. Use for less important actions that the user may not often be looking to do. Tertiary Buttons have lower prominence as its container is not visible until it is interacted with. Use Tertiary Buttons for supplemental actions such as “View More”, “Read More” or “Select a File”. Tertiary Buttons are frequently used on List Items.

Tertiary Buttons have two sizes on mobile: small, and medium. Icons are supported for every size and can be positioned to the left or right with the iconPosition prop.

Tertiary Buttons also have an inverse variant. Use this when you need to place a Tertiary Button on a dark or colorful background such as blueberry400.

Tertiary Buttons and their inverse variants support the Inactive, Pressed, and Disabled Interaction States.

API Documentation

Component Definition

@Composable
fun ButtonUiComponent(
    modifier: Modifier = Modifier,
    enabled: Boolean = true,
    size: ButtonSizeConfig = ButtonSizeConfig.Large,
    iconConfig: ButtonIconConfig = ButtonIconConfig.NoIcon,
    buttonStyle: ButtonStyles = primaryButtonStyle(),
    iconPainter: Painter? = null,
    contentPadding: PaddingValues = buttonPaddingValues(size, iconConfig),
    contentDescription: String = "",
    onClick: () -> Unit = {},
    content: @Composable RowScope.() -> Unit,
) {

Parameters

All undocumented parameters are native Android Compose types that can be found in the developer documentation.

Accessibility Guidelines

Refreshed mobile guidelines will be coming soon!

Content Guidelines

• See the Buttons and Calls to Action page in the UI Text section of the Content Style Guide for button language guidelines.
• When writing Tooltips to pair with Icon Buttons, refer to the Tooltips section of the Content Style Guide.
